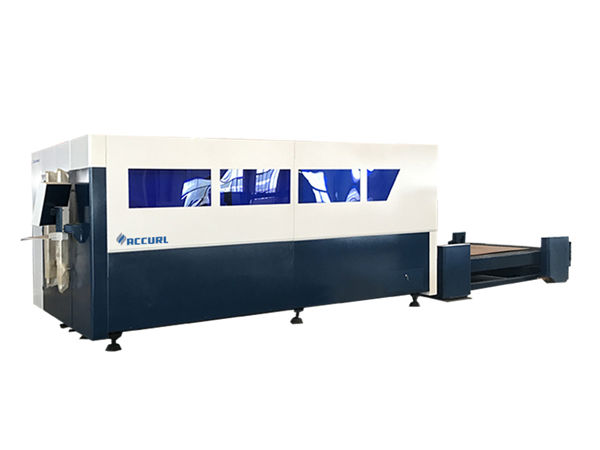

mașină de tăiat cu laser cu o singură platformă cnc, tăietor de foi metalice

mașină de tăiat cu laser cu o singură platformă cnc, tăietor de foi metalice

Detalii produs


Certificare: CE / ISO / FDA / SGS / TUV
Condiții de plată și expediere:
Cantitatea minimă a comenzii: 1
Preț negociabil
Detalii ambalaj: Husa din lemn
Timp de livrare: 15 zile lucrătoare
Condiții de plată: T / T, L / C, Western Union
Capacitate de aprovizionare: 2000 de unități

Descrierea detaliată a produsului


Numele produsului:Mașină de tăiat cu fibre laserTip laser:Laser cu fibre
Putere laser:500-1000wZonă de muncă:1500 * 3000mm
Lungime de undă laser:1070-1090nmAlimentare electrică:380V / 50Hz
garanţie:1 anCap de tăiere:Raytools

Configurație principală și avantaj tehnic


Little to no maintenance costs
Parts process cost is very low
A "clean cut" surface quality is obtained
Fiber laser cutting is the fastest process for thin sheet metal
Reflective materials like aluminium,copper and brass can be cut with ease
Resonator life is over 100,000 working hours

Caracteristici principale


1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Fast cutting speed save working time .
3. Energy saving and environmental protection;
4. Excellent quality of light beam:small focus facula, fine cutting line, high working efficiency,best processing quality.
5.Very low maintenance costs: optical fiber transmission, without reflection lens; can save a lot of maintenance costs;
6. Products easy operation : no need to adjust the optical path;
7. Flexible light guide effect: small size, compact structure and easy to meet flexible manufacturing requirements.

Parametri tehnici


Product nameMașină de tăiat cu fibre laser
Tip laserLaser cu fibre
Working area(mm)1300*2500MM/1500*3000MM
Cap de tăiereRaytools Auto-Focus (Swiss)
Laser power(W)500W/800W/1000W/1500W
Driving and Transmission WayServo Motor ,Gear Rack, Linear Guide Rail
Viteza maximă de rulare600m/min
Precizia poziționării≤ ± 0.05mm
Re-positioning Accuracy≤±0.03mm
Working Power SupplyAC220V±10% 50HZ/380V 50Hz
Masa de lucruRack working platform
Sistem de controlSistem de control Cypcut
Location SystemRed dot indicator
Water Cooling SystemCW6300 Constant temperature water chiller
Accelerare maximă1G
FormatsBMP,DXF,PLT,DST,CDR,GPEG
Cutting DepthAccording the power
Whole machine weight2800KG
TransmisiePrecise pinion and rack,dual-drive transmitting



DescriptionsParametrii
Model1530 Fiber laser cutting machine
Zonă de muncă1500 * 3000mm
Putere laser500W,1000W,15000W,2KW,3KW and so on, it depends on your demand.
Laser Wave Length1064nm
Masa de lucruSawtooth
Maximum Idle Running Speed1200mm/s
Precizia poziției±0.05mm/m
Position Speed20m / min
Minimum Line Width± 0.02mm
Grosimea tăierii0-12mm
Sistem de controlCypcut
Position Typered dot
Consumul de energie≤12KW
Working Voltage380V / 50Hz
Auxiliary Gasoxygen,nitrogen,air
Working life of fiber modulePeste 100000 ore
Fiber laser cutting headLasermech made in USA
Obiectiv de focalizareLasermech made in USA
Driver system1500W Fuji servo motor made in Japan
Liner guider systemPMI made in Taiwan , (Option THK made in Japan)
Sistem de transmisieDual Rack & Pinion tip
Sistem de rafturimade in Germany
Chain systemIgus made in Germany
Delivery time15 days

Aplicație produs


1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Aplicații


Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
