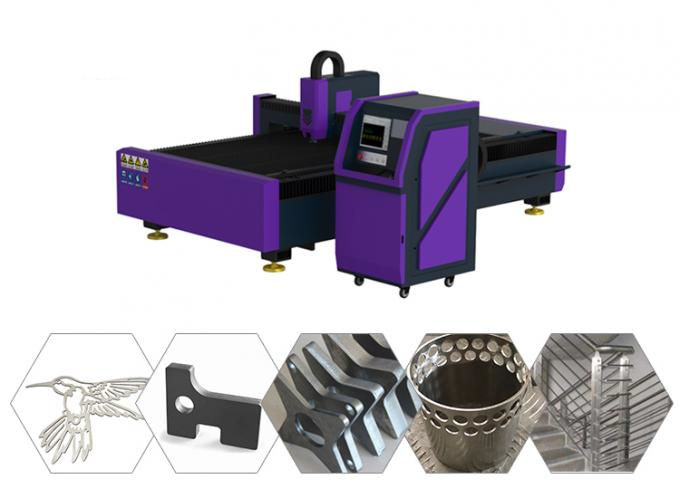

cnc metal cutting laser machine / fiber optic laser cutter

Detalii produs

Certificare: CE / ISO / FDA / SGS / TUV
Condiții de plată și expediere:
Cantitatea minimă a comenzii: 1
Preț negociabil
Detalii ambalaj: Husa din lemn
Timp de livrare: 15 zile lucrătoare
Condiții de plată: T / T, L / C, Western Union
Capacitate de aprovizionare: 2000 de unități

Descrierea detaliată a produsului

Numele produsului:	Mașină de tăiat cu fibre laser	Tip laser:	Laser cu fibre
Putere laser:	500-1000w	Zonă de muncă:	1500 * 3000mm
Lungime de undă laser:	1070-1090nm	Alimentare electrică:	380V / 50Hz
garanţie:	1 an	Cap de tăiere:	Raytools

^{Configurație principală și avantaj tehnic}

^{1, Fiber laser cutting is the fastest process for thin sheet metal.
2, A "clean cut" surface quality is obtained.
3, Reflective materials like aluminium,copper and brass can be cut with ease.
4, Parts process cost is very low.
5, Little to no maintenance costs.
6, Consumable part cost is low. The only parts that need to be changed are nozzles, ceramics and protection glasses over long periods. There are no other consumable costs.
7. Resonator life is over 100,000 working hours}

^{Caracteristici principale}

^{1.High stability: the world's top imported fiber laser, stable performance and service life of critical component up to 100,000 hours;
2. Fast cutting speed save working time .
3. Energy saving and environmental protection;
4. Excellent quality of light beam:small focus facula, fine cutting line, high working efficiency,best processing quality.
5.Very low maintenance costs: optical fiber transmission, without reflection lens; can save a lot of maintenance costs;
6. Products easy operation : no need to adjust the optical path;
7. Flexible light guide effect: small size, compact structure and easy to meet flexible manufacturing requirements.}

^{Parametri tehnici}

^{Product name}	^{Mașină de tăiat cu fibre laser}
^{Tip laser}	^{Laser cu fibre}
^{Working area(mm)}	^{13002500MM/15003000MM}
^{Cap de tăiere}	^{Raytools Auto-Focus (Swiss)}
^{Laser power(W)}	^{500W/800W/1000W/1500W}
^{Driving and Transmission Way}	^{Servo Motor ,Gear Rack, Linear Guide Rail}
^{Viteza maximă de rulare}	^600m/min
^{Precizia poziționării}	^{≤ ± 0.05mm}
^{Re-positioning Accuracy}	^≤±0.03mm
^{Working Power Supply}	^{AC220V±10% 50HZ/380V 50Hz}
^{Masa de lucru}	^{Rack working platform}
^{Sistem de control}	^{Sistem de control Cypcut}
^{Location System}	^{Red dot indicator}
^{Water Cooling System}	^{CW6300 Constant temperature water chiller}
^{Accelerare maximă}	^1G
^Formats	^{BMP,DXF,PLT,DST,CDR,GPEG}
^{Cutting Depth}	^{According the power}
^{Whole machine weight}	^2800KG
^Transmisie	^{Precise pinion and rack,dual-drive transmitting}

Aplicație produs

1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
2.Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
3.Large format cutting area meets the demands of various kinds of metal processing.1.Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.

Aplicații

Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing .
