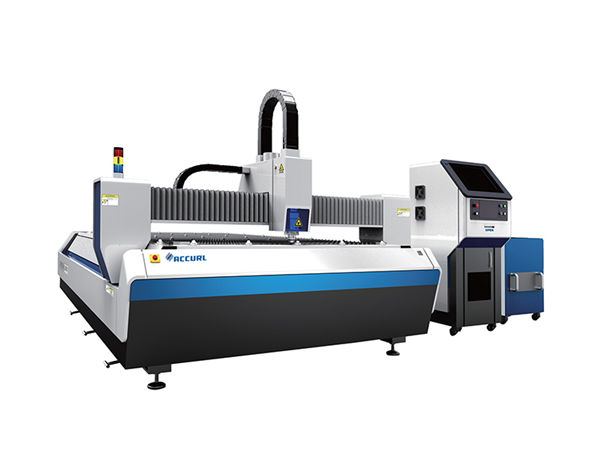

middle power stainless steel laser cutting machine ,1500w laser sheet cutting machine

Detalii produs

Certificare: CE / FDA
Condiții de plată și expediere:
Cantitate minimă de comandă: 1 SET
Preț: USD Negociabil
Detalii despre ambalaj: cutie din lemn cu curea de legare a fierului
Timp de livrare: 15 - 30 de zile lucrătoare
Condiții de plată: T / T, L / C, Western Union
Capacitate de aprovizionare: 2000 de unități pe an

Descrierea detaliată a produsului

Zona de tăiere:	1500 * 3000mm	Mod de racire:	Racirea apei
Putere laser:	1500W	Software de control:	Cypcut
Condiție:	Nou	Sarcina maximă pentru sarcini:	1000kgs
CNC sau nu:	da	Lungime de undă laser:	1060-1080nm
Precizia poziționării:	± 0,05 Mm	Tensiune de lucru:	380V / 50Hz

descrierea produsului

1. The machine is welded with a high-intensity whole sheet, and after high temperature annealing,the machine can be used for 20 years without any deformation.
2. With imported precision gear and rack, linear guide rail and transmission,the machine tool is of high precision, high efficiency and high stability.
3. Equipped with advanced wireless handheld terminal,the machine can be operated with remote control.
4. The equipment adopts the laser special speed matching system, high performance servo motor drive, is the integration of pneumatic, mechanical, photoelectric, numerical control and other advanced technologies as one of the high-tech products.

Caracteristici

1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficieny.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.
5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.

Fiber Laser Cutting Machine Different Laser Sources Comparing

Model of Laser Source	Fibră	CO2	Disc
Electro-optical Conversion Efficiency	30%	10%	15%
Max. Output	50Kw	20Kw	8Kw
BPP(4/5Kw)	<2.5	6	8
Life of Diode Pumped	>100,000	NA.	10,000
Occupied Area(4/5Kw)	<1M2	3M2	>4M2
Maintenance	no need	need	Often
Soft Processing	more suitable	unsuitable	suitable
Stability	best	good	good
Absorption rate%--steel	35	12	35
Absorption rate%--aluminum	7	2	7
Replaced Parts	High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other.	Laser work requires gas supplement, reflection lens replacement.	Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000.

Applied materials of 1500W Fiber Laser Cutting Machine

Cuțitul de fibre este folosit în principal pentru tăierea oțelului carbon, oțelului ușor, oțelului inoxidabil, oțelului siliciu, aliajului de aluminiu, aliajului de titan, foii de oțel zincat, plăcii de decapare, plăcii de aluminiu zinc, cupru și a multor tipuri de materiale metalice. Este un tăietor cu laser cnc care poate fi folosit pentru a face tăierea de înaltă precizie. De asemenea, poate fi numită mașină de tăiat fibre, freză cu laser optică, tăietor cu laser pentru metal, tăietor de fibre, tăiere din oțel carbon, tăietoare cu laser cnc.

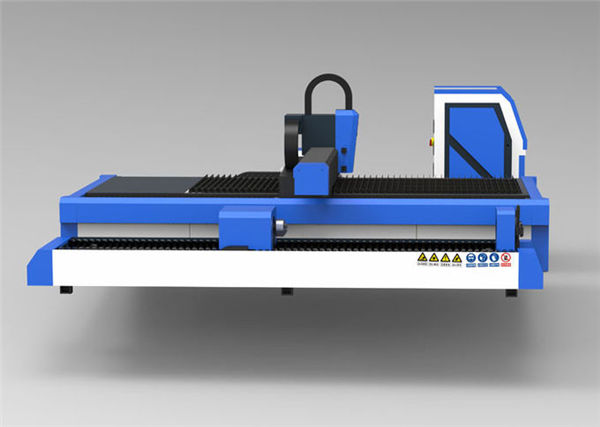

Parametru tehnic

Zonă de muncă	3000 * 1500mm
Controler + Următor înălțime	Cypcut
Sursa laser	Fiber Laser Source 1500W
Lungimea valului	1070nm ± 10nm
Cap laser	facultativ
Gear and Rack	Germania
Șină de ghidare	Taiwanul HIWIN
Precizia poziționării	≤ ± 0.04mm
Grosimea tăierii	1-20mm
Viteza maximă de tăiere	40000mm / min (conform materialelor)
Tensiune de lucru	AC220V / 110V ± 10% 50HZ / 60HZ
Lățimea minimă a liniei	≤0.12mm
Transmisie	Reductor Yaskawa servo 850W + FASTON
Axa Z	Yaskawa 400W + frână
Răcire	Racirea apei
Structura	Tub de oțel sudat cu grosime de 10 mm, poartă din aliaj de aluminiu
Consumul de energie	≤7.5KW

Performance for 1500W Fiber Laser Cutting Machine

1.The machine enjoys outstanding performances with high cutting speed, high efficiency, safety and stability. And diode pump solid state laser has the advantage of longer working life, free maintenance and the highest photo-electric conversion efficiency. It also ensures a small divergence angle and light beams of good quality.
2. The light spot enjoys good quality and small heat deformation. Besides, cutting seams are even and nice.
3. After tempering treatment, steel frames with high rigidity are of high vibration-absorbed performance with tempering treatment. And frames with gantry structure are one-step processed in large CNC gantry machining center. With optimized structure, the machine enjoys stability and high accuracy.
4. Imported servo motors and sophisticated direction transmission mechanism ensure high steadiness and accuracy.
5. An intuitive human-machine interface (HMI) with many practical functions is easy to operate.
6. An imported ball screw and linear guides ensure transmission and direction.
7. The sealed cutting head automatically tracks work pieces and has the function of anti-collision.
8. The power supply of the machine is designed with automatic safety protection, and features fault alarm.
9. With fashionable, delicate and artistic design, the compact machine covers smaller floor area without scattered parts. And it’s easy to operate the machine.
